Circular Saw - R-Line Series

Universal Enterprises provides a comprehensive range of cutting solutions, including Gencut, Strucut, Strucut Plus, Supreme, Xpert, Toughcut, Alcastor, CB-Stru Plus, and our Circular Saw Series R-Line, B-Line, and X-Line.

Circular Saw

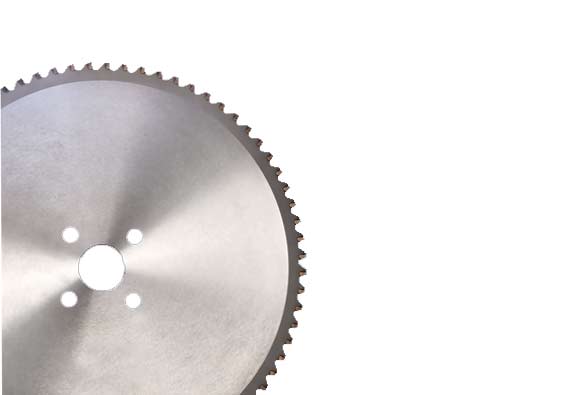

R-Line Series - Non Coated Circular Saw Cutter

Features

Qualified for high speed cutting with improved life.
To keep longer life for cutting with normal speed.
Improved life under complex cutting condition.
High performance in cutting high carbon steel materials.
Avoid blades scuffing during cutting.

Specification

Application: Medium and high carbon steel . (Mechanical structure carbon steel, alloy steel of 0.25% - 0.60% carbon contents)
Parameter: Line speed 100 – 130m/min
Feeding speed: 0.05 – 0.10mm (Adjustable according to different equipment or cutting material)
Cutting Fluid: Special cooling lubricants
Plate Material: SKS51

OUT DIAMETER	PLATE THICKNESS	KERF THICKNESS	BORE DIAMETER	NUMBER OF TEETH
160	1.5	1.8	32	48T
180	1.5	1.8	32	54T
200	1.7	2.0	32	54T
230	1.7	2.0	32	60T
250	1.7/1.75	2.0	32	60T/72T/80T/90T/100T
285	1.71/1.75	2.0	32/40	60T/72T/80T/100T/120T
300	1.75/1.75	2.0	32	50T/54T/60T/72T/80T
315	2.0	2.25	32	60T/72T/80T/100T/120T
330	2.0	2.25	32	60T/72T/80T/100T/120T
360	2.25	2.6	40/50	60T/72T/80T/100T/120T
380	2.25	2.6	40/50	60T/72T/80T/100T/120T
400	2.25	2.7	50	50T/60T/72T/80T
425	2.25	2.7	50	60T/72T/80T/100T
460	2.25	2.7	50	50T/54T/60T/72T/80T/100T/120T
485	2.25	2.7	50	60T/72T/80T/100T
520	2.5	2.7	50	60T/72T/80T/100T
560	2.5	3.0	50	60T/72T/80T/100T
630	2.7	3.4	80	60T/72T/80T/100T/120T

Download Brochure

Experience the power of precision — contact us now to find your perfect blade
