Circular Saw - B-Line Series

Universal Enterprises provides a comprehensive range of cutting solutions, including Gencut, Strucut, Strucut Plus, Supreme, Xpert, Toughcut, Alcastor, CB-Stru Plus, and our Circular Saw Series R-Line, B-Line, and X-Line.

Circular Saw

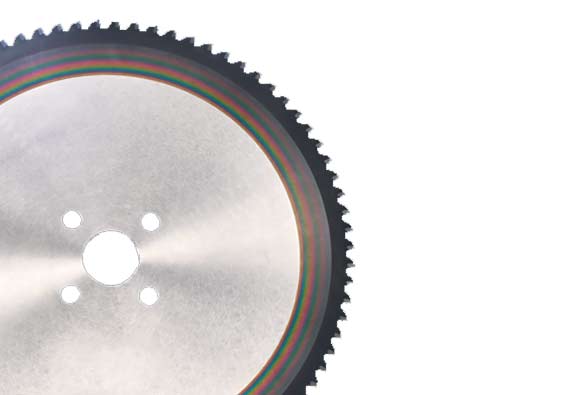

B-Line Series - Coated Circular Saw Cutter

Features
  • Suitable for high speed cutting.
  • Hair cutting precision with excellent surface finish on cutting surface.
  • Improved life and cutting efficiency due to reduced
  • coefficient of frictionand the temperature on teeth during cutting.
  • Multi-purpose (Such as: low carbon steel, medium
  • carbon steel high carbon steel application Characteristics)
Specification
  • Application: High carbon Medium carbon Steel. (Mechanical structure carbon steel, alloy steel of 0.60% - 1.7% carbon contents)
  • Parameter: Line speed 100 – 130m/min
  • Feeding speed: 0.05 – 0.8mm (Adjustable according to different equipment or cutting material)
  • Cutting Fluid: Special cooling lubricants
  • Plate Material: SKS51
OUT DIAMETER PLATE THICKNESS KERF THICKNESS BORE DIAMETER NUMBER OF TEETH
1601.51.84048T
1801.71.84054T
2001.72.04054T
2301.72.04060T
2501.7/1.752.03254T/60T/72T/80T/90T/100T/120T
2851.71/1.752.03240T/60T/72T/80T/100T/120T/140T
3001.75/2.02.03250T/54T/60T/72T/80T
3152.02.253254T/60T/72T/80T/100T/130T
3302.02.253260T/72T/80T/100T/120T
3602.252.64040T/60T/72T/80T/100T/120T
3802.252.64040T/50T/54T/60T/72T/80T/100T/120T
4002.252.75050T/60T/72T/80T
4252.252.75060T/72T/80T/100T
4602.252.75040T/50T/54T/60T/72T/80T/100T/120T
4852.252.75040T/60T/72T/80T/100T
5202.52.75040T/60T/80T/100T
5302.52.75072T
5602.53.05060T
6302.73.48060T/72T/80T/100T/120T
6502.73.480100T
